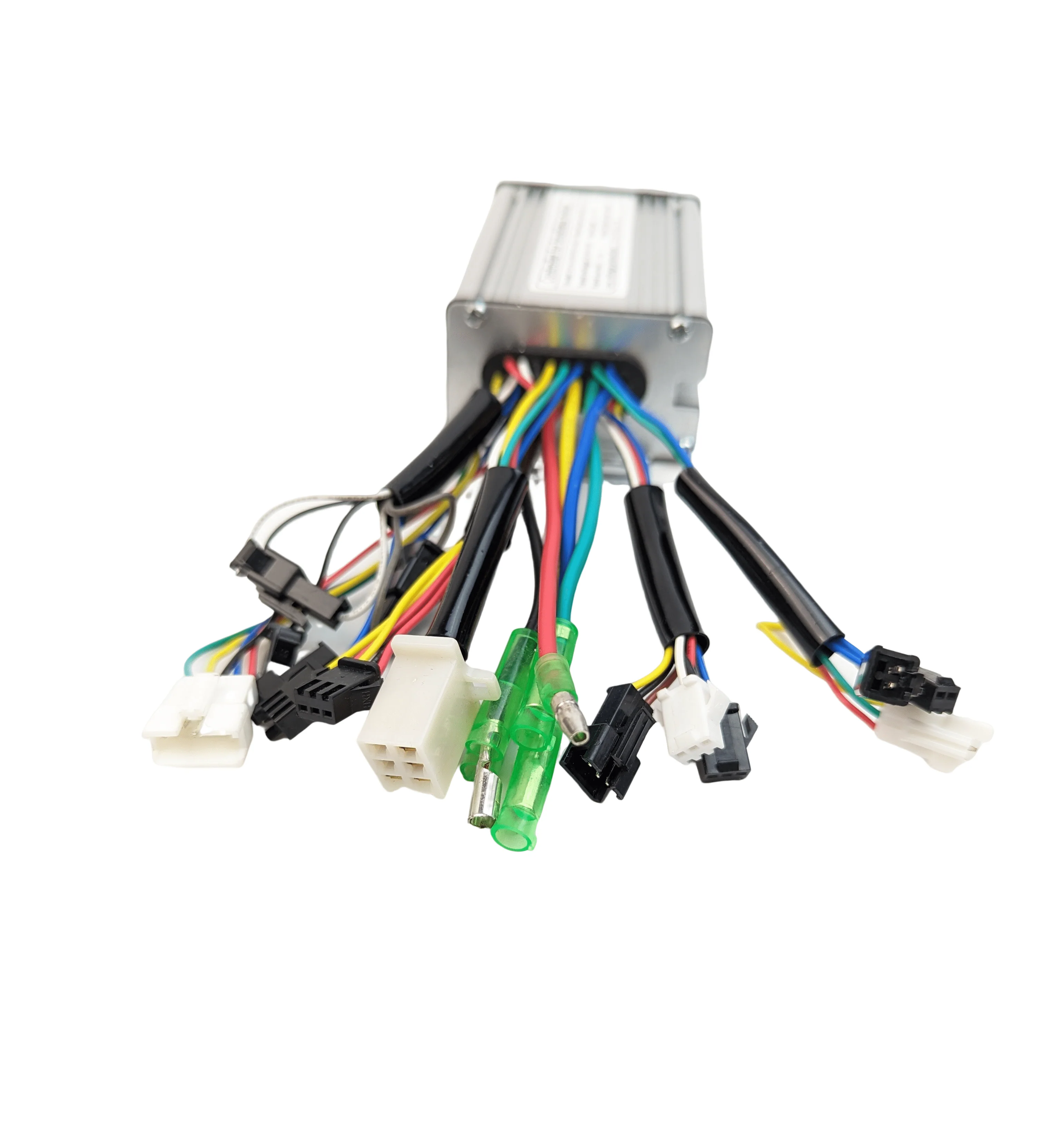

36V/48V 500W 20A Brushless DC Sine Wave Controller Ebike Electric Bicycle



UK Stock Fast Delivery

• Can work only with KT Displays (won't work with SW900 Displays)

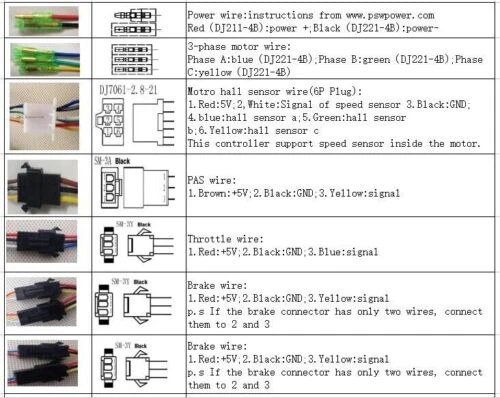

• This is sensored controller, so controller has three big cable and five sensor wires and one speed sensor wire. you motor must have 8pcs wires or 9pcs wires, If you motor just  three big cable,please buy sensorless controller
• KT controller can work with geared or gearless motors

Product details:

• Input Voltage: DC 36V or 48V (Universal)

• Min. Voltage: DC30V/40±0.5V
• Max. Current: 20±1A
• Rated Current: 10A
• Speed set: 1-4.2V
• Brake Input: Low-Level
• Size: 96x61x35mm
• Color: Silver
• 6 pcs stronger MOSFET
• Applicatoin: Max. 36V/48V 500W
• Fit bafang 8FUN 500W sensor motor

Item Features:

• 36V or 48V Universal  (support both voltage)
• This controller can working without the PAS(Pulse Padel Assistant Sensor)
• Sine Wave Controller (more stable, high efficiency, low current consumption, long life)
• Support hydraulic brake sensor or brake sensor connector
• Support LED Control Panel or LCD Control Panel
• Support 36V or 48V Light Control
• Support speed limit to 70%
• Support Cruise Function
• Support speaker and led right
• Support Regenerative Function (must use our LCD Display together to active this function)



Package Included

• 1 X 36V/48V 500W 20A Brushless DC Sine Wave Controller
